ABS — Material Description

ABS (acrylonitrile butadiene styrene) is a strong, durable, and chemically resistant thermoplastic widely used for functional prototypes and engineering parts. It offers better mechanical performance than PLA, making it suitable for applications requiring toughness, impact resistance, and heat stability. ABS models have a slightly rougher surface due to the FDM printing process, but vapour smoothing can significantly improve appearance.

Technical Specifications

General Properties
Accuracy: ±0.3% (minimum ±0.2 mm)
Density: 1.04 g/cm³
Min. wall thickness: 1 mm
Default layer height: 0.2 mm
Default infill: 20%
Embossing: Minimum 2.5 mm
Engraving: Minimum 1 mm
Interlocking parts: Yes
Warping risk: Moderate

Mechanical Properties
Tensile strength: 32 – 45 MPa
Tensile modulus: 1618 – 2030 MPa
Tensile elongation: 4.8 – 20%
Flexural strength: 60 – 76 MPa
Flexural modulus: 1800 – 2070 MPa

Thermal Properties
HDT (0.45 MPa): 81 – 95°C
HDT (1.8 MPa): 80 – 95°C

Material Characteristics
Impact resistant
Functional and durable
Heat and chemical resistant
Stronger than PLA
Ideal for engineering components, brackets, housings, and functional prototypes

PLA — Material Description

PLA (polylactic acid) is a biodegradable thermoplastic derived from renewable resources. It is easy to print, visually clean, affordable, and ideal for prototypes, display models, containers, and functional parts that only need to withstand light loads. As a low-cost material with good dimensional accuracy and low warping, PLA is perfect for beginners and general-purpose prints that don’t require high strength or heat resistance.

Technical Specifications

General Properties
Accuracy: ±0.3% (minimum ±0.2 mm)
Density: 1.24 g/cm³
Min. wall thickness: 1 mm
Default layer height: 0.2 mm
Default infill: 20%
Embossing: Minimum 0.6 mm
Engraving: Minimum 0.6 mm
Interlocking parts: Yes
Warping risk: Yes, for parts over 140 mm or thin/long structures

Mechanical Properties
Tensile strength: 26.8 – 70 MPa
Tensile modulus: 1817 – 3973 MPa
Tensile elongation: 1.9 – 20%
Flexural strength: 46.2 – 88 MPa
Flexural modulus: 2461 – 3800 MPa

Thermal Properties
HDT (0.45 MPa): 50 – 55°C

Material Characteristics
Highly visual
Low warping
Easy to print
Best for prototypes, cosmetic parts, containers, light-duty functional prints

PLA+ / Tough PLA — Material Description

PLA+ and Tough PLA are advanced versions of traditional PLA filament, offering improved mechanical performance while remaining easy to print and eco-friendly. These materials provide higher impact resistance, reduced brittleness, lower warping, improved layer adhesion, and better dimensional accuracy compared to regular PLA. PLA+ is ideal for functional prototypes, mechanical components, engineering models, and durable everyday parts where strength and reliability are required without sacrificing visual quality.

Technical Specifications

General Properties
Accuracy: ±0.3% (minimum ±0.2 mm)
Density: 1.24 g/cm³
Min. wall thickness: 1 mm
Default layer height: 0.2 mm
Default infill: 20%
Embossing: Minimum 0.4 mm
Engraving: Minimum 0.4 mm
Interlocking parts: Yes
Warping risk: Low

Mechanical Properties
Tensile strength: 50 – 80 MPa
Tensile modulus: 2000 – 4500 MPa
Tensile elongation: 10 – 200%
Flexural strength: 70 – 100 MPa
Flexural modulus: 2000 – 4500 MPa

Thermal Properties
HDT (0.45 MPa): 60 – 75°C
HDT (1.8 MPa): 50 – 65°C

Material Characteristics
Impact resistant
Strong and functional
Good visual appearance
Low warping & good printability
Suitable for everyday mechanical parts, prototypes, and display models

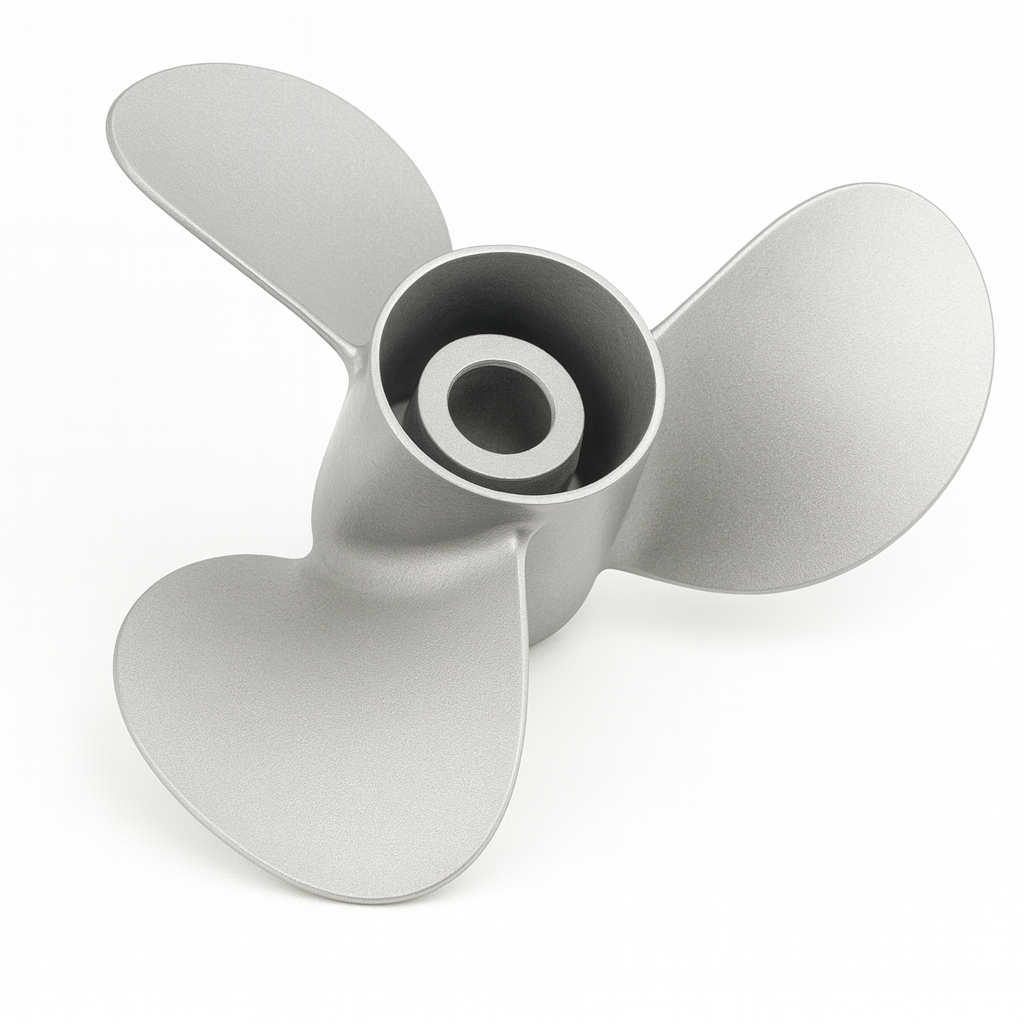

316L Stainless Steel — Material Description

316L Stainless Steel is a highly durable alloy known for its exceptional corrosion resistance, strength, and reliability. Manufactured through SLM/DMLS, LMM, or DMP metal 3D printing, it delivers dense, high-performance metal parts ideal for both industrial applications and refined aesthetic components.

This alloy is widely used in engineering, automotive, robotics, marine environments, tooling, and decorative hardware. Its excellent chemical resistance and high heat tolerance make it suitable for demanding real-world conditions.

316L Stainless Steel is available in a range of premium finishes including sandblasted matte, polished matte, satin glossy, and mirror polished.

Technical Specifications

General Properties
Accuracy: ±0.3% (lower limit ±0.3 mm)
Density: 7.9 g/cm³
Minimum wall thickness: 1 mm
Default layer height: 0.05 mm
Default infill: 100%
Embossing: Minimum 0.5 mm
Engraving: Minimum 0.5 mm
Interlocking parts: Yes
Warping risk: Yes, for thin or long structures over 140 mm

Mechanical Properties
Tensile Strength: 620 – 800 MPa
Tensile Modulus: 180,000 – 210,000 MPa
Tensile Elongation: 20 – 55%
Flexural Modulus: 180,000 – 210,000 MPa

Thermal Properties
HDT (0.45 MPa): 300 – 400°C
HDT (1.8 MPa): 250 – 350°C

Material Characteristics
Highly corrosion resistant
Strong and mechanically durable
Heat resistant
Chemically resistant
Suitable for functional, structural, and decorative parts
Excellent for outdoor, marine, and industrial environments

Aluminium (AlSi10Mg) — Material Description

Aluminium alloy AlSi10Mg is a strong, lightweight metal with excellent thermal properties, ideal for high-performance functional parts. It is manufactured using SLM/DMLS metal 3D printing, where aluminium powder is selectively melted by a laser to form dense, high-strength components comparable to machined parts.

Unlike polished or milled aluminium, 3D-printed aluminium has a matte grey finish with a slightly rougher texture. The alloy contains silicon, giving the surface a subtle, fine sparkle.

Technical Specifications:
General Properties
Density: 2.67 g/cm³
Minimum wall thickness: 1 mm
Accuracy: ±0.2% (minimum ±0.2 mm)
Default layer height: 0.15 mm
Default infill: 100%
Warping risk: Yes, for parts over 140 mm or long/thin structures
Interlocking parts: Supported

Mechanical Properties:
Tensile Strength: 330 – 520 MPa
Tensile Modulus: 70,000 – 80,000 MPa
Tensile Elongation: 4 – 14%
Flexural Modulus: 70,000 – 80,000 MPa

Thermal Properties:
HDT (0.45 MPa): 150 – 200°C
HDT (1.8 MPa): 120 – 160°C

Design Guidelines:
Embossing: Minimum 0.5 mm
Engraving: Minimum 0.5 mm

Material Characteristics:
Strong and lightweight
Heat-resistant
Suitable for functional and load-bearing parts
Great for engineering, automotive, robotics and aerospace components
